4-channel differential encoder pulse counter, speed measurement, Modbus RTU module WJ67
Product features:
Encoder decoding and conversion to standard Modbus RTU protocol
Encoder 5V differential signal directly input
Can be used as an encoder counter or speed measurement
Supports simultaneous counting of 4 encoders, capable of recognizing forward and reverse rotation
It can also be set as an 8-way independent DI high-speed counter
Encoder count value supports automatic power-off saving
3000V isolation between DI input and power supply
Through the RS-485/232 interface, it is possible to reset and set the count value
Wide power supply range: 8~32VDC
High reliability, convenient programming, and easy application
Standard DIN35 rail installation for convenient centralized wiring
User programmable module address, baud rate, etc
External dimensions: 120 mm x 70 mm x 43mm
Typical applications:
Encoder pulse signal measurement
Flow meter pulse counting or flow measurement
Counting of production line products

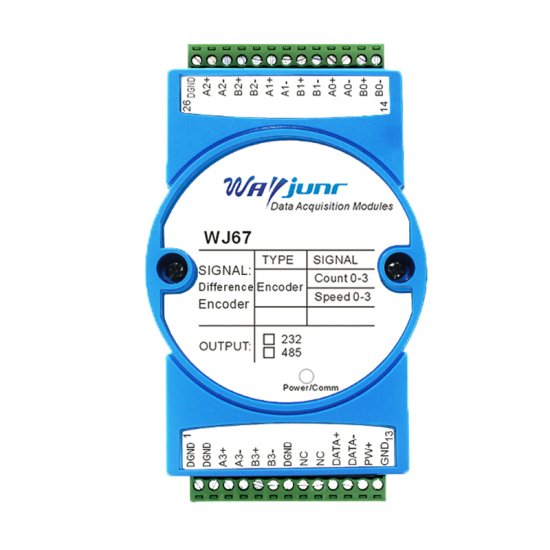

Logistics package quantity counting diagram 1 WJ67 module appearance diagram
Measurement of proximity switch pulse signals
Encoder signals are transmitted remotely to industrial computers
Intelligent factories and industrial Internet of Things
Replace PLC with direct data transmission to the control center
Product Overview:
The WJ67 product achieves signal acquisition between sensors and the host for decoding encoder signals. The WJ67 series products can be applied to RS-232/485
Bus industrial automation control system, automated machine tools, industrial robots, three coordinate positioning system, displacement measurement, stroke measurement, angle measurement, speed measurement
Measurement, flow measurement, product counting, and so on.
The product includes signal isolation, pulse signal capture, signal conversion, and RS-485 serial communication. Each serial port can connect up to 255 WJ67 series modules,
The communication method adopts ASCII code communication protocol or MODBUS RTU communication protocol, and the baud rate can be set by the code, which can be hung with control modules from other manufacturers
On the same RS-485 bus, it is convenient for computer programming.
The WJ67 series products are intelligent monitoring and control systems based on microcontrollers, with all user set addresses, baud rates, data formats, checksums
The configuration information such as status is stored in the non-volatile memory EEPROM.
The WJ67 series products are designed and manufactured according to industrial standards, with no isolation between signal inputs/outputs, strong anti-interference ability, and high reliability. working temperature
Range -45 ℃ to+85 ℃.
Function Introduction:
The WJ67 remote I/O module can be used to measure four encoder signals or can be set as an eight channel independent counter.
1. Signal input
4-channel encoder 5V differential signal input or 8-channel 5V differential signal independent counter.
2. Communication protocol
Communication interface: 1 standard RS-485 communication interface or 1 standard RS-232 communication interface, specified when ordering and selecting.
Communication protocol: Supports two protocols, the character protocol defined by the command set and the MODBUS RTU communication protocol. The module automatically recognizes the communication protocol,
Can achieve network communication with multiple brands of PLC, RTU or computer monitoring systems.
Data format: 10 digits. 1-bit start bit, 8-bit data bit, 1-bit stop bit. No verification.
The communication address (0-255) and baud rate (2400, 4800, 9600, 19200, 38400, 57600, 115200bps) can be set; communication
The longest distance of the network can reach 1200 meters and is connected through twisted pair shielded cables.
High anti-interference design of communication interface, ± 15KV ESD protection, communication response time less than 100mS. 3. Anti-interference
Checksum can be set as needed. There are transient suppression diodes inside the module, which can effectively suppress various surge pulses and protect the module
Word filtering can also effectively suppress power frequency interference from the power grid.
