4-channel grating ruler magnetic grating ruler encoder 5MHz high-speed differential signal to Modbus TCP network module WJ97
Product features:
Decoding and converting grating ruler magnetic grating ruler to standard Modbus TCP protocol
Direct input of 5V differential signal with grating ruler and 4th harmonic counting
The module can output a 5V power supply to power the grating ruler
High speed grating ruler magnetic grating ruler counting, frequency up to 5MHz
Supports simultaneous counting of 4 grating rulers, capable of recognizing forward and reverse directions
All data can be viewed directly on the webpage without the need for other software
Encoder count value supports automatic power-off saving
Isolation between DI inputs and network communication interfaces
It is possible to reset and set the counting value through the network communication interface
Wide power supply range: 8~32VDC
High reliability, convenient programming, and easy application
Standard DIN35 rail installation for convenient centralized wiring
Users can set module IP address and other parameters through the webpage
External dimensions: 120 mm x 70 mm x 43mm
Typical applications:
Measurement of grating ruler magnetic grating ruler length
Flow meter pulse counting or flow measurement
Counting of production line products

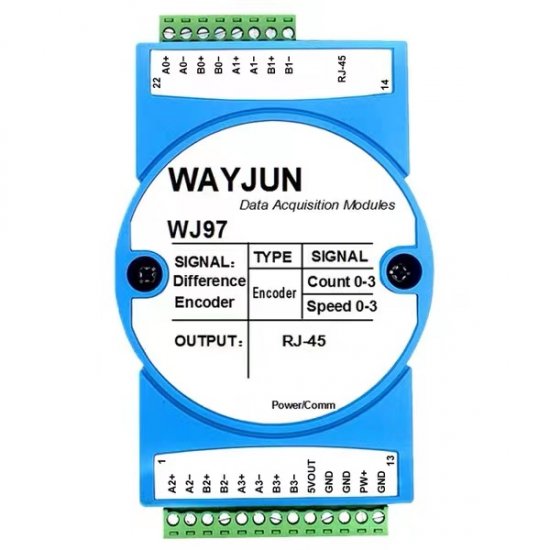

Numerical control machine tool position data measurement diagram 1 WJ97 module appearance diagram
Encoder signals are transmitted remotely to industrial computers
Intelligent factories and industrial Internet of Things
Replace PLC with direct data transmission to the control center
Product Overview:
The WJ97 product realizes signal acquisition between sensors and the host, used to decode grating ruler magnetic grating ruler encoder signals. The WJ97 series products can be applied in
Ethernet bus industrial automation control system, automated machine tools, industrial robots, three coordinate positioning system, displacement measurement, stroke measurement, angle measurement,
Speed measurement, flow measurement, product counting, and so on.
The product includes signal isolation, pulse signal capture, signal conversion, and Ethernet communication. The communication method adopts ASCII code communication protocol or MODBUS TCP
The communication protocol, TCP, is a transport layer based protocol that is widely used, connection oriented, and reliable. Users can directly set the module IP address on the webpage
Address, subnet mask, etc
The WJ97 series products are intelligent monitoring and control systems based on microcontrollers, where user configured module IP addresses, subnet masks, and other configuration information are stored
In the non-volatile memory EEPROM.
The WJ97 series products are designed and manufactured according to industrial standards, with isolation between signal input/communication, strong anti-interference ability, and high reliability. Working temperature range
Surrounding -45 ℃ to+85 ℃.
Function Introduction:
The WJ97 remote I/O module can be used to measure four encoder signals or can be set as an eight channel independent counter.
1. Signal input
4-channel encoder 5V differential signal input or 8-channel 5V differential signal independent counter.
2. Communication protocol
Communication interface: RJ-45 network interface. The two indicator lights at the network port position, after the network cable is plugged in, the Link light (green light) will remain on and the Data light (yellow light) will remain on
It will flicker irregularly.
Communication protocol: Supports MQTT protocol and can connect to various MQTT platforms such as Alibaba Cloud, Tencent Cloud, Huawei Cloud, China Mobile IoT OneNET, Private Cloud, etc
The server. MODBUS TCP protocol can also be used to achieve industrial Ethernet data exchange.
It also supports communication protocols such as TCP/UDP/WebSocket.
Network cache: 2K Bytes (both receive and send)
Communication response time: less than 10mS. 3. Anti-interference
Checksum can be set as needed. There are transient suppression diodes inside the module, which can effectively suppress various surge pulses and protect the module
Word filtering can also effectively suppress power frequency interference from the power grid.
Product manual：https://www.wayjun.cn/d/
