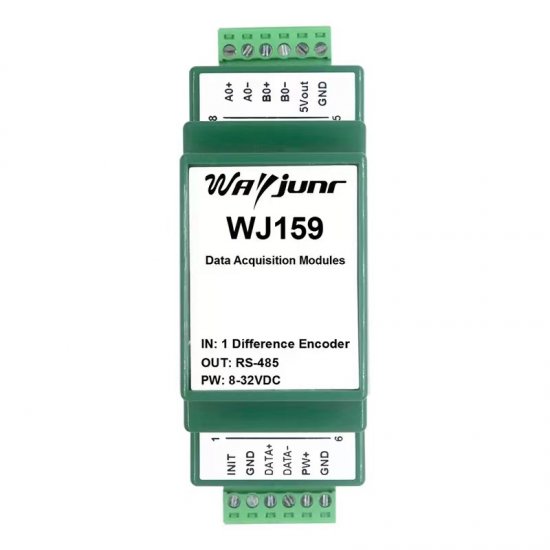

1 differential grating ruler magnetic grating ruler encoder 4th harmonic pulse counter, Modbus RTU module WJ159
Product features:
Differential grating ruler magnetic grating ruler converted to standard Modbus RTU protocol
Can be used for measuring range angle or speed
Adopting 4x frequency counting, capable of identifying forward and reverse directions
The measured values support automatic saving after power failure
Can set pulse rate to automatically convert actual values
The module can output a 5V power supply to power the grating ruler
When there is interference in pulse input, the filtering time can be set
Zeroing and setting measurement values can be achieved through the RS-485 interface
Wide power supply range: 8~32VDC
High reliability, convenient programming, and easy application
Standard DIN35 rail installation for convenient centralized wiring
User programmable module address, baud rate, etc
Typical applications:
Differential grating ruler pulse signal measurement
Differential magnetic grating ruler pulse signal measurement
Three coordinate system position measurement
Measurement of pulse signals from ball grid ruler
Remote transmission of grating ruler signals to industrial computer
Encoder signals are transmitted remotely to industrial computers
Encoder pulse signal measurement
Intelligent factories and industrial Internet of Things
Product Overview:
The WJ159 product realizes signal acquisition between sensors and the host, used to decode grating and magnetic grating signals. The WJ159 series products can be applied in
RS-485 bus industrial automation control system, automated machine tools, industrial robots, three coordinate positioning system, displacement measurement, stroke measurement, angle measurement,
Speed measurement, product meter measurement, and so on.
The product includes signal acquisition, pulse signal capture, signal conversion, and RS-485 serial communication. Each serial port can connect up to 255 WJ159 series modules,
The communication method adopts ASCII code communication protocol or MODBUS RTU communication protocol, and the baud rate can be set by the code, which can be hung with control modules from other manufacturers
On the same RS-485 bus, it is convenient for computer programming.
The WJ159 series products are intelligent monitoring and control systems based on microcontrollers, with all user set addresses, baud rates, data formats, checksums
The configuration information such as status is stored in the non-volatile memory EEPROM.
The WJ159 series products are designed and manufactured according to industrial standards, with no isolation between signal inputs/outputs, strong anti-interference ability, and high reliability. Working temperature
Temperature range -45 ℃ to+85 ℃.
Function Introduction:
The WJ159 remote I/O module can be used to measure one 5V differential grating ruler magnetic grating ruler encoder signal.
1. Signal input
One 5V differential grating ruler magnetic grating ruler encoder signal input.
2. Communication protocol
Communication interface: 1 standard RS-485 communication interface.
Communication protocol: Supports two protocols, the character protocol defined by the command set and the MODBUS RTU communication protocol. The module automatically recognizes the communication protocol,
Can achieve network communication with multiple brands of PLC, RTU or computer monitoring systems.
Data format: 10 digits. 1-bit start bit, 8-bit data bit, 1-bit stop bit. No verification.
The communication address (0-255) and baud rate (2400, 4800, 9600, 19200, 38400, 57600, 115200bps) can be set; communication
The longest distance of the network can reach 1200 meters and is connected through twisted pair shielded cables.
High anti-interference design of communication interface, ± 15KV ESD protection, communication response time less than 100mS. 3. Anti-interference
Checksum can be set as needed. There are transient suppression diodes inside the module, which can effectively suppress various surge pulses and protect the module
Word filtering can also effectively suppress power frequency interference from the power grid.
Product manual：https://www.wayjun.cn/d/
