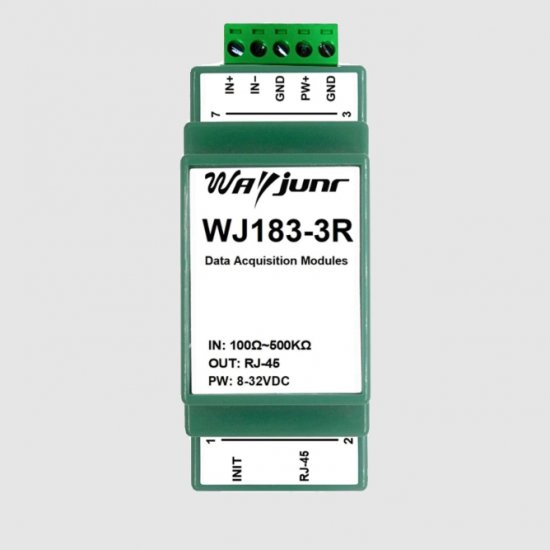

Resistance potentiometer electronic scale to network Modbus TCP and MQTT network data acquisition module WJ183
Product features:
Signal acquisition and conversion of resistance potentiometer electronic ruler to standard Modbus TCP protocol
Supports communication protocols such as TCP Server, UDP, MQTT, etc
Built in web page function, allowing data to be queried through web pages
Wide power supply range: 8~32VDC
High reliability, convenient programming, and easy application
Standard DIN35 rail installation for convenient centralized wiring
Users can set module IP addresses and other parameters on the webpage
Low cost, small volume, modular design
External dimensions: 106 mm x 59mm x 37mm
Typical applications:
Signal measurement, monitoring, and MQTT reporting
TCP network, data collection
Intelligent building control, security engineering and other application systems
Industrial automation control system based on TCP network
Industrial site signal isolation and long-distance transmission
Equipment operation monitoring, MES system
Potentiometer, displacement signal measurement
Acquisition and recording of industrial site data
Development of medical and industrial control products
Signal acquisition of resistance potentiometer electronic ruler
Product Overview:
The WJ183 product is an IoT and industrial Ethernet acquisition module that enables transparent data exchange between sensors and networks. Can transmit
The analog data of the sensor is forwarded to the network.
The WJ183 series products include power conditioning, analog signal acquisition, and RJ-45 network interface communication. The communication method adopts MODBUS TCP protocol. TCP
It is a transport layer based protocol that is widely used, connection oriented, and reliable. Users can directly set the module IP address and subnet mask on the webpage
Wait. Can be used for monitoring and controlling the operation of sensor equipment.
The WJ183 series products are intelligent monitoring and control systems based on microcontrollers, where configuration information such as module IP addresses and subnet masks set by users are stored
Exists in non-volatile memory EEPROM.
The WJ183 series products are designed and manufactured according to industrial standards, with strong anti-interference ability and high reliability. Working temperature range -45 ℃ to+80 ℃.
