Main features:
>>Input input: input potentiometer or resistance signal: 0-50Ω/0-100Ω/0-200Ω/
0-500Ω/0-1KΩ/0-2KΩ/0-5KΩ/0-10KΩ
>>Output signal: Output standard voltage signal: 0-5V/0-10V/1-5V/0-±5V/0-±10V
Or output standard current signal: 0-10mA/0-20mA/4-20mA
>>Auxiliary power supply: 5V, 9V, 12V, 15V or 24V DC single power supply
>>Industrial temperature range:-45 ~ + 85 ℃
>>Accuracy grade: 0.1 grade
>>Isolation withstand voltage: 2500VDC (1mA, 60S),
Input1/input2/output1/output2/power five isolation
>>Installation method: DIN35 rail installation
>>Dimensions: 79x69.5x25mm
typical application:
>>Displacement measurement, angle measurement
>>Isolation transmission of potentiometer and electronic scale signal
>>Resistance measurement and transmission

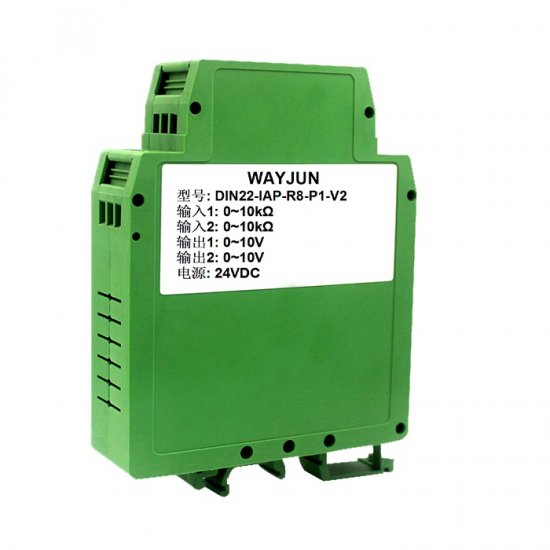

Overview:
The electronic ruler signal transmitter product developed by Weijunrui Technology is mainly used for the isolation and transmission of 0-5K, 0-10K and other displacement or angle sensor signals (the sensor needs to be equipped by the user), and it is mainly used for the signal in the industry. Isolation and transmission. The input of the transmitter is driven by constant pressure, which is suitable for 3-wire sensors. If it is a 2-wire sensor, it can also be customized into a constant current drive mode as required. Input 1, input 2, output 1, output 2 and the auxiliary power supply are completely isolated (five isolation), and can withstand an isolation voltage of 2500VDC. The product adopts DIN35 international standard guide rail installation method, with small size, high precision, stable performance and high cost performance. It can be widely used in petroleum, chemical, electric power, instrumentation and industrial control industries.
This series of electronic ruler signal isolation amplifiers is very convenient to use, and only need to connect the wires to realize the isolated transmission of displacement signals.
