with Modbus,RS485/232 to Analog Current or Voltage Signal Converters,D/A Converter
Output is 1 channel voltage/current signal,or 2-channel common ground current/voltage signal
Features：
>>DIN Rail-mounted
>>RS485/232 to 4-20ma/0-5V analog signal output
>>12-bit DA converter,analog signal output accuracy>0.2%
>>Can be remotely reconfigured for modules accuracy
>>Three-port Isolation: 3000VDC isolation.
>>Wide power supply range:8~32VDC
>>High reliability, easy program, installation.
>>Can program setting module address, baud rate
>>Support Modbus RTU
Applications：
>>Intelligent building control, security and engineering applications
>>RS485/232 industrial automation control system
>>Industrial fields signal isolation and long-terms transmission
>>Debugging and control of equipment operation
>>4-20mA signal output
>>Medical machine monitoring
>>Sensor signal to restore the long-range transmission and signal
>>Industrial field data for a given actuator
Function Description：

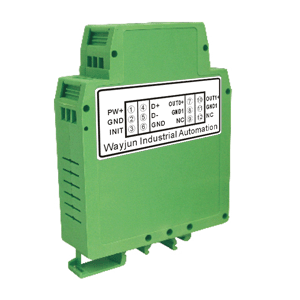

WJ31 signal isolated D/A converter module, 1 channel voltage/current signal,or 2-channel common ground current/voltage signal output.
WJ31 - □ - □
Communication Interface | output signal |
voltage | current |
| 485:RS-485 input | U1: 0-5V | A1: 0-1mA |
232: RS-232 input | U2: 0-10V | A2: 0-10mA |
| | U3: 0-75mV | A3: 0-20mA |
| | U4: 0-2.5V | A4: 4-20mA |
| | U5: 0-±5V | A5: 0-±1mA |
| | U6: 0-±10V | A6: 0-±10mA |
| | U7: 0-±100mV | A7: 0-±20mA |
| | U8: user-defined | A8: user-defined |
Example 1: Type No.: WJ31-485-A4 means RS485 to 4-20mA
Example 2：Type No.: WJ31-232-U1 means RS232 to 0-5V
Example 3：Type No.: WJ31-485-U1 means RS485 to 0-5V
Example 4: Type No.: WJ31-232-A4 means RS232 to 4-20mA
Note:when you order ,please choose your input and output or note your Part No..
Download Datasheet : D/A Converter WJ31.pdf
