Features:
>> Five channels temperature signal acquisition, isolated converter RS-485/232 output
>> 24-bit AD converter, testing accuracy>0.05%
>> 4-wire measurement, long-term compensation, high accuracy
>> Support RTD broken-wire detection
>> Programmable PT100 or PT1000 signal input
>> Can be programmed calibration module precision through RS485/232 interface
>> 3000VDC Isolation between signal input and signal output
>> Wide power supply range: 8~32VDC
>> Supports Modbus RTU protocol
>> DIN35 Rail-mounted
>> Users can set module address, baud rate and so on
Typical Application:
>> Temperature signal measurement/monitoring/control
>> RS-485 remote I / O, data acquisition
>> RS-232/485 bus industrial automation control system
>> Industrial field signal data acquisition and recording
>> Industrial field signal isolation and long-term transmission
>> Medical, industrial product development
Product Selection:

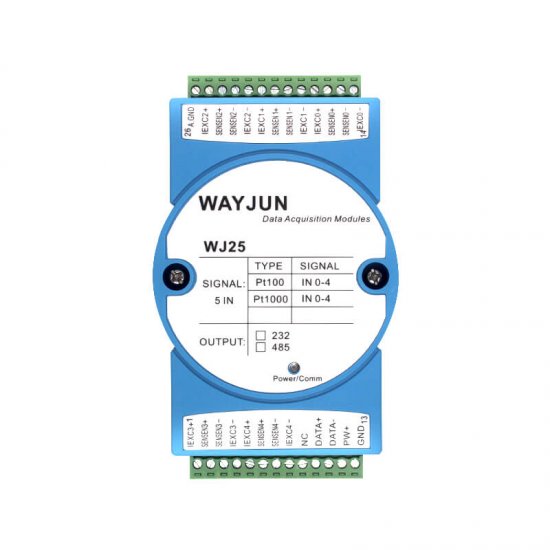

Part No.:WJ25-485 (means 5 channels RTD temperature signal input, output is RS485 interface)
Part No.:WJ25-232 (means 5 channels RTD temperature signal input, output is RS232 interface)
Note: when order,please tell us your type No.(WJ25-485 or WJ25-232)
